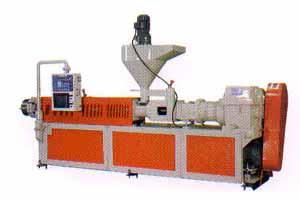

Extruder
|
|
|
|
MAIN MOTOR
|
|
Model No.
|
KK-75TRP
|
KK-100TRP
|
KK-120TRP
|
|
SCREW Ø
|
75 MM x 2
|
100 MM x 2
|
120 MM x 2
|
|
L/D RATIO
|
22:1
|
22:1
|
22:1
|
|
SCREW MATERIAL
|
ALLOYED STEEL ACM-2(Cr AI Ni) (Spaces)
|
|
BARREL MATERIAL
|
JIS SACM-1
|
|
HEATING TYPE
|
ELECTRIC HEATER
|
ELECTRIC HEATER
|
ELECTRIC HEATER
|
|
COOLING TYPE
|
AIR-COOLING / OIL-COOLING
|
AIR-COOLING / OIL-COOLING
|
AIR-COOLING / OIL-COOLING
|
|
HEATING ZONE
|
8 ZONES
|
11 ZONES
|
13 ZONES
|
|
HEATER CAPACITY
|
15 KW
|
25 KW
|
35 KW
|
|
CONTROL PANEL
|
INDEPENDENT
|
INDEPENDENT
|
INDEPENDENT
|
|
GEAR MATERIAL
|
SNCM-25
|
SNCM-25
|
SNCM-25
|
|
EXTRUDER TYPE
|
TWIN-SCREW
|
TWIN-SCREW
|
TWIN-SCREW
|
|
SCREW ROTATION DIRECTION
|
COUNTER ROTATING
|
COUNTER ROTATING
|
COUNTER ROTATING
|
|
SCREW RPM
|
60 RPM
|
50 RPM
|
40 RPM
|
|
CIRCULATION LUBRICANT
|
90#
|
90#
|
90#
|
|
GEARBOX TYPE
|
PUMP PRESSURE LUBRICATION
|
PUMP PRESSURE LUBRICATION
|
PUMP PRESSURE LUBRICATION
|
|
RESIN FEEDING MOTOR
|
1 HP
|
2 HP
|
3 HP
|
|
LUBRICATION MOTOR
|
1 HP
|
1 HP
|
1 HP
|
|
OIL CIRCULATION PUMP
|
1/2 HP
|
1/2 HP
|
1/2 HP
|
|
VACUUM PUMP
|
2 HP
|
2 HP
|
3 HP
|
|
MAIN DRIVING MOTOR
|
AC 40 HP
|
AC 60 HP
|
AC 100 HP
|
|
CENTER HEIGHT
|
1060 MM
|
1060 MM
|
1060 MM
|
|
OUTPUT
|
200 - 250 kg/Hr
|
400 - 600 kg/Hr
|
700 - 850 kg/Hr
|
|
SUITABLE PIPE SIZE
|
1" - 3" SINGLE
3/8" - 1 1/2" TWIN
|
4" - 10" SINGLE
2" - 4" TWIN
|
12" - 16" SINGLE
|
|
POWER CONSUMPTION
|
50 KW
|
95 KW
|
110 KW
|
|
MACHINE DIMENSIONS
|
3.4M(L) x 1M(W) x 2.3M(H)
|
4M(L) x 1.1M(W) x 2.6M(H)
|
4M(L) x 1.1M(W) x 2.6M(H)
|
|
|
|
|

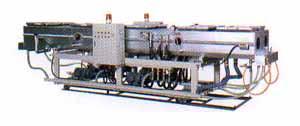

Vacuum & Cooling Tank
|
|
|
|
VACUUM & COOLING TANK
|
|
Model No.
|
KK-75TRP/A
|
KK-100TRP/A
|
KK-120TRP/A
|
|
SUITABLE PIPE SIZE
|
1" - 3" SINGLE
3/8" - 1 1/2" TWIN
|
4" - 10" SINGLE
2" - 4" TWIN
|
12" - 16" SINGLE
|
|
CENTER HEIGHT
|
1060 MM
|
1060 MM
|
1060 MM
|
|
WATER PUMP
|
3 HP x 1 PCS SINGLE
2 HP x 2 PCS TWIN
|
5 HP x 1 PCS SINGLE
3 HP x 2 PCS TWIN
|
10 HP x 1 PCS SINGLE
|
|
VACUUM PUMP
|
3 HP x 1 PCS SINGLE
3 HP x 2 PCS TWIN
|
5 HP x 1 PCS SINGLE
5 HP x 2 PCS TWIN
|
7 1/2" HP x 1 PCS SINGLE
|
|
MACHINE DIMENSIONS
|
4.9M(L) x 0.9M(W) x 1.3M(H)
|
6.1M(L) x 1M(W) x 1.4M(H)
|
6.4M(L) x 1M(W) x 1.3M(H)
|
|
|
VACUUM SPRAY TYPE COOLING RING WATER TANK
|
|
Model No.
|
KK-75TRP/A
|
KK-100TRP/A
|
KK-120TRP/A
|
|
SUITABLE PIPE SIZE
|
1" - 3" SINGLE
3/8" - 1 1/2" TWIN
|
4" - 10" SINGLE
2" - 4" TWIN
|
12" - 16" SINGLE
|
|
CENTER HEIGHT
|
1060 MM
|
1060 MM
|
1060 MM
|
|
WATER PUMP
|
3 HP x 1 PCS SINGLE
2 HP x 2 PCS TWIN
|
5 HP x 1 PCS SINGLE
3 HP x 2 PCS TWIN
|
10 HP x 1 PCS SINGLE
|
|
MACHINE DIMENSIONS
|
4.9M(L) x 0.9M(W) x 1.3M(H)
|
6.1M(L) x 1M(W) x 1.4M(H)
|
6.4M(L) x 1M(W) x 1.3M(H)
|
|
|
|
|
Haul-Off unit
|
|
|
|
HAUL-OFF UNIT
|
|
Model No.
|
KK-75TRP/B
|
KK-100TRP/B
|
KK-120TRP/B
|
|
SUITABLE PIPE SIZE
|
1" - 3" SINGLE
3/8" - 1 1/2" TWIN
|
4" - 10" SINGLE
2" - 4" TWIN
|
12" - 16" SINGLE
|
|
CENTER HEIGHT
|
1060 MM
|
1060 MM
|
1060 MM
|
|
CLAMPING TYPE
|
3 CLAMPS SINGLE TYPE
TOP-BOTTOM AIR CYLINDER CLAMPS TWIN TYPE
|
6 CLAMPS SINGLE TYPE
|
|
CONVEYER LENGTH
|
1.6M SINGLE
1.1M TWIN
|
1.6M SINGLE
1.1M TWIN
|
2.5M SINGLE
|
|
CONVEYER NUMBER
|
3 PCS SINGLE
4 PCS TWIN
|
3 PCS SINGLE
4 PCS TWIN
|
6 PCS SINGLE
|
|
DRIVING MOTOR
|
5 HP x 1 PCS SINGLE
2 HP x 2 PCS TWIN
|
5 HP x 1 PCS SINGLE
2 HP x 2 PCS TWIN
|
10 HP x 1 PCS SINGLE
|
|
LINE SPEED
|
0 - 6 M/MIN SINGLE
0 - 3 M/MIN TWIN
|
0 - 3 M/MIN SINGLE
0 - 5 M/MIN TWIN
|
0 - 3 M/MIN SINGLE
|
|
MACHINE DIMENSIONS
|
2.4M(L) x 1.2M(W) x 2M(H)
|
2.4M(L) x 1.2M(W) x 2M(H)
|
2.9M(L) x 2.2M(W) x 2.2M(H)
|
|
|
|
|
Cutter
|
|
|
|

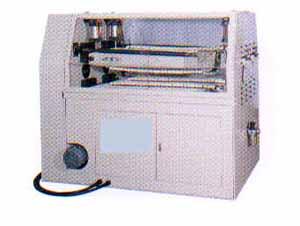

AUTO-CUTTING UNIT
|
|
Model No.
|
KK-75TRP/C
|
KK-100TRP/C
|
KK-120TRP/C
|
|
SUITABLE PIPE SIZE
|
1" ~ 3" SINGLE
3/8" ~ 1 1/2" TWIN
|
4" ~ 10" SINGLE
2" ~ 4" TWIN
|
12" ~ 16" SINGLE
|
|
CENTER HEIGHT
|
1060 MM
|
1060 MM
|
1060 MM
|
|
CUTTER TYPE
|
Circular Saw
Twin Blades
|
Circular Saw
Single Blade
|
|
CUTTING LENGTH CONTROL
|
LIMIT SWITCH
|
LIMIT SWITCH
|
LIMIT SWITCH
|
|
MACHINE DIMENSIONS
|
2.5M(L) x 0.9M(W) x 1.7M(H)
|
2.5M(L) x 1.1M(W) x 1.8M(H)
|
2.5M(L) x 1.5M(W) x 1.7M(H)
|
|
