100lb Full Extension Slides |
|
|
|
|
|
| 產品介紹 |
| 100lb Full Extension Slides |
 |
 |
 |
 |

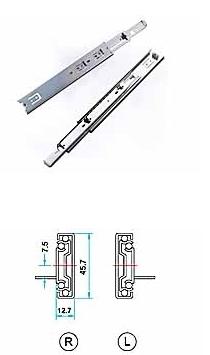

NJ-3032 |
 |
 |
| Mounting: |
Side mount. |
| Side Clearance: |
1/2" plus 1/32" minus 0" each side. |
| Height: |
1-13/16"(45.7mm) |
| Loading: |
100 pound class. |
| Size: |
10",12", 14",16",18",20",22", 24", 26", 28", |
| Feature: |
32mm hole pattern. Simple access mounting on drawer |
| |
and cabinet members. Breathing tabs self adjust to side clearance. Hold/close function. Lever disconnect for drawer removal. For face frame & frameless mounting. |
| Finish: |
Zinc plated |
| Packing: |
15 pairs individually poly-packaged, no screws. |
| Option: |
Black zinc plated, Galvanized steel, Interlock, 1" |
| |
over-travel, Back socket, Self-closing. |
| |
|
| |
| |
|
 |
 |
 |
 |
 |
 |

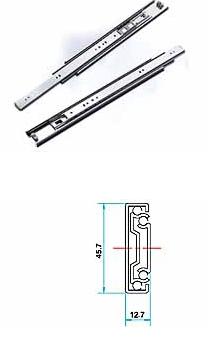

NJ-3031 |
| |
|
| Mounting: |
Bottom and side mount. |
| Side Clearance: |
1/2" plus 1/32" minus 0" each side. |
| Height: |
1-13/16"(45.7mm) |
| Loading: |
100 pound class. |
| Size: |
12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Feature: |
32mm hole pattern. Simple access mounting on drawer |
| |
and cabinet members. Breathing tabs self adjust to side clearance. Hold/close function. Lever disconnect for drawer removal. Shelf tab design for easy bottom or side mount. |
| Finish: |
Zinc plated. |
| Packing: |
LH or RH 30 pieces individually poly-packaged per box, no screws. |
| |
| Option: |
Black zinc plated, Galvanized steel, Self-closing, Interlock, 1" over-travel, Back socket. |
| |
| |
|
| |
|
|
 |
| |
|
 |
| |
|
NJ-3038 |
| |
|
| Mounting: |
Side mount. |
| Side Clearance: |
12.7mm plus 0.8 minus 0" each side. |
| Height: |
1-13/16" (45.7mm) |
| Loading: |
45.4kgs class. |
| Size: |
250mm, 300mm, 350mm, 400mm, 450mm, |
| |
500mm, 550mm, 600mm, 650mm, 700mm |
| Feature: |
32mm hole pattern. Simple access mounting on drawer |
| |
and cabinet members. Breathing tabs self adjust to side clearance. Hold/close function. Lever disconnect for drawer removal. |
| Finish: |
Zinc plated. |
| Packing: |
15 pairs individually poly-packaged, no screws. |
| Option: |
Black zinc plated, Galvanized steel, Self-closing,
Interlock, 1" over-travel |
| |
. |
| |
|
|
 |
| |
|
 |
| |
|
NJ-31147 |
| |
|
| Mounting: |
Side mount. |
| Side Clearance: |
1/2" plus 1/32" minus 0" each side. |
| Height: |
1-13/16" (45.7mm) |
| Loading: |
100 pound class. |
| Size: |
10", 12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Feature: |
32mm hole pattern. Simple access mounting on drawer |
| |
and cabinet members. Breathing tabs self adjust to side clearance. Hold/close function. Lever disconnect for drawer removal. For face frame & frameless mounting. |
| New Function: |
Pull out grip-stop as full extension position. |
| Finish: |
Zinc plated |
| Packing: |
15 pairs individually poly-packaged, no screws. |
| Option: |
Black zinc plated , Galvanized steel |
| |
|
|
 |
| |
|
|
| |
|
NJ-3112 |
| |
|
| Mounting: |
Side mount. |
| Side Clearance: |
1/2"plus 1/32" minus 0" each side. |
| Height: |
1-13/16" (45.7mm) |
| Loading: |
100 pound class. |
| Size: |
12", 14", 16", 18", 20", 22", 24", 26",28" |
| Feature: |
Built-in mounting tabs design for quick installation. |
| |
Hold/close function. Lever disconnent for drawer removal. |
| Finish: |
Zinc plated. |
| Packing: |
LH or RH 24 pieces individually poly-packaged |
| Packing: |
per box, no screws. |
| Option: |
Black zinc plated, Galvanized steel, Self-closing, |
| |
Interlock, 1" over-travel. |
|
 |
| |
|
 |
|
|
|
|
