產品介紹

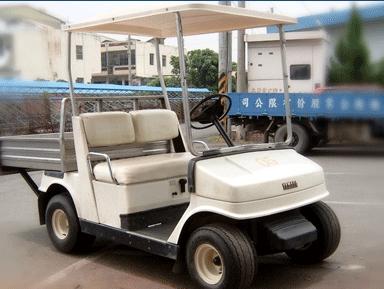

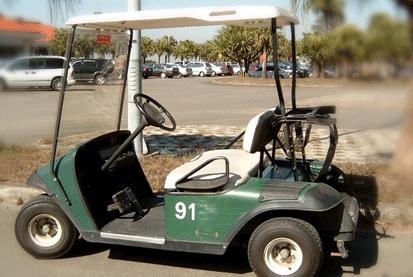

多用途電動車
3 5 8 休 閒 車
規格尺寸
1760m/m x 1000m/m x 1660m/m

總重量

210g ( 含 2PCS100Z電池 )

前輪規格

13 / 500-6

後輪規格

18/850-8
墊離地高度
67 cm

馬力

1KW

驅動方式

24V炭刷馬達配差速器組合

最高速度

5-18KM
航力
充滿電一次可駛里程50-60公里
迴轉半徑
2M
爬坡度
15度
承載重量
300kg
引力
700kg
煞車系統 液油壓碟煞+電磁煞車
充電器 20A自動平衡充滿電自動斷電裝置
其他配備
手自排、 前後方向燈、前車燈、故障燈、前後保險桿、
前輪懸吊系統、後輪雙碟煞、頂棚後視鏡
2 5 8 tour vehicl / convertible / unconvertible
Dimension (L x W x H )
2550m/m x 1000m/m x 1700m/m
Total weight
280 k g ( with 2 PCS 100 Z battery )
Front wheels tandard
13 / 500-6
Rear wheel tandard
18/850-8
Seat distance from ground
67 cm
Horsepower
1KW
Drive way
24Vcharcoal-brush motor(a differential gear)
Highest speed
5-18KM
duration mileages
once charge can drive 50 - 55 km
Turn round radius
3M
Maximum climbing angle
15 °
Load-carrying ability
300kg
Pulling force
700kg
Stop vehicle system hydraulic brakes and electromagnetic brakes
battery charger 20 A charge automaticly and disconnection automaticly device
Other equipment
manual or automation、turn signal(before and after)、 lamps(before and after)、 breakdown lamps 、 bumper、 front wheel (suspensory systemmatic)、 hydraulic brakes(a rear wheel)、 rear-view mirror
