| 75lb Single Extension Slides |
 |
 |
 |
 |
NJ-4032 |
 |
 |
| Mounting: |
Side mount. |
| Side Clearance: |
1/2" plus 1/32" minus 0 each side.. |

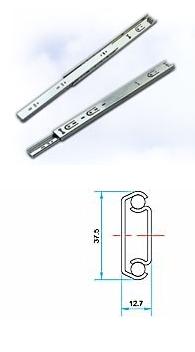

| Height: |
1-15/32" (37.5mm) |
| Loading: |
75 pound class. |
| Size: |
10", 12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Feature: |
Non-handed design. 32mm hole pattern. Quick lever |
| |
disconnect for easy drawer removal. Hold-in feature to prevent bounce back. Cabinet member breathing tabs self-adjust to
side clearance. |
| Finish: |
Zinc plated. |
| Packing: |
20 pairs individually poly-packaged no screws. |
| Option: |
Black zinc plated, Galvanized steel. |
| |
|
|
 |
 |
 |
 |
 |
 |
NJ-4112 |
| |
|
| Mounting: |
Side mount. |
| Side Clearance: |
1/2" plus 1/32" minus 0 each side. |
| Height: |
1-15/32" (37.5mm) |
| Loading: |
75 pound class. |
| Size: |
12", 14", 16", 18", 20", 22", 24", 26", 28" |
| Feature: |
Built-in mounting tabs for quick installation. |
| |
Hold/close function. Lever disconnect for drawer removal. |
| Finish: |
Zinc plated. |
| Packing: |
LH or RH 30 pieces individually poly-packaged per box,
|
| |
no screws. |
| Option: |
Black zinc plated, Galvanized steel. |
|
 |
| |
|
 |
